Application:

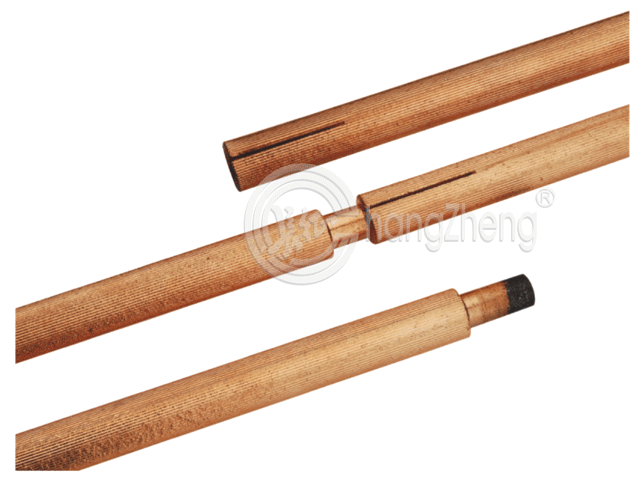

Having the added benefit of working without stub loss with each rod having male and female parts,can be used with manual and fully automatic torches.
| Barcode | Diameter× Length | Working Electric Current(A) | |
|---|---|---|---|
| MM | Inch | ||
| FJN00008355-01 | 8*355 | 5/16*14" | 450 |
| FJN00008430-00 | 8*430 | 5/16*17" | 450 |
| FJN000095355-00 | 10*355 | 3/8*14" | 550 |
| FJN000100430-01 | 10*430 | 3/8*17" | 550 |
| FJN000100430-03 | 10*430Premium | 3/8*17" | 650 |
| FJN000100455-00 | 10*455 | 3/8*18" | 550 |
| FJN000130355-00 | 13*355 | 1/2*14" | 900 |
| FJN000130430-01 | 13*430 | 1/2*17" | 900 |
| FJN000130430-04 | 13*430Premium | 1/2*17" | 1000 |
| FJN000130455-00 | 13*455 | 1/2*18" | 900 |
| FJN000160355-00 | 16*355 | 5/8*14" | 1100 |
| FJN000160430-01 | 16*430 | 5/8*17" | 1100 |
| FJN000160430-02 | 16*430Premium | 5/8*17" | 1200 |
| FJN000160455-00 | 16*455 | 5/8*18" | 1100 |
| FJN000190355-00 | 19*355 | 3/4*14" | 1300 |
| FJN000190430-00 | 19*430 | 3/4*17" | 1300 |
| FJN000190430-01 | 19*430Premium | 3/4*17" | 1600 |
| FJN000210430-00 | 19*430U206 | 3/4*17" | 1600 |
| FJN000190455-00 | 19*455 | 3/4*18" | 1300 |
| FJN000250430-01 | 25*430 | 1*17" | 1600 |
